Camshaft Position Sensor Replacement: Signs, Diagnosis and Cost Guide

A faulty camshaft position sensor can cause more than a check engine light. Learn the signs of sensor failure, how technicians confirm the problem, and when camshaft position sensor replacement is the right choice.

Your Camshaft Position Sensor Might Be the Problem

A camshaft position sensor replacement is needed when the sensor can no longer accurately monitor the camshaft's position and send that information to the engine's computer. A faulty camshaft position sensor can disrupt ignition and fuel timing, leading to poor engine performance. Common warning signs include a check engine light, rough running, hard starting, or other bad camshaft sensor symptoms that should be diagnosed before they become more serious.

Many drivers don't realize these symptoms can point to a failing sensor until the problem starts affecting everyday driving. This guide explains how to recognize the signs of a failing camshaft sensor, why it fails, how technicians confirm the diagnosis before recommending check engine light repair, and when replacing the sensor is the best way to restore reliable engine performance.

What Does a Camshaft Position Sensor Do?

A camshaft position sensor monitors the position and speed of the camshaft and sends that information to the engine control module (ECM). The ECM uses this data to control fuel injection, ignition timing, and other engine functions so the engine runs efficiently. Understanding how this sensor works also makes it easier to see why a camshaft position sensor replacement becomes necessary when the sensor can no longer provide accurate information.

The camshaft and crankshaft work together to keep the engine moving parts in sync. The camshaft position sensor tells the ECM which cylinder is on its power stroke and exactly where the camshaft is during each engine cycle. Using this information, the ECM determines when to inject fuel and when to fire the spark plugs. Accurate timing helps the engine produce smooth power, improve fuel efficiency, and reduce exhaust emissions.

How Does the Sensor Work?

Most modern vehicles use a Hall-effect or magnetic camshaft position sensor. As a toothed gear or reluctor wheel attached to the camshaft rotates past the sensor, it generates an electrical signal. The sensor continuously sends this signal to the ECM, allowing the computer to track the camshaft's position in real time and make precise adjustments while the engine is running.

Some vehicles use an optical sensor instead, which detects camshaft position using a light beam. Although the technology differs, both types perform the same job: providing the engine computer with accurate timing information for reliable engine operation.

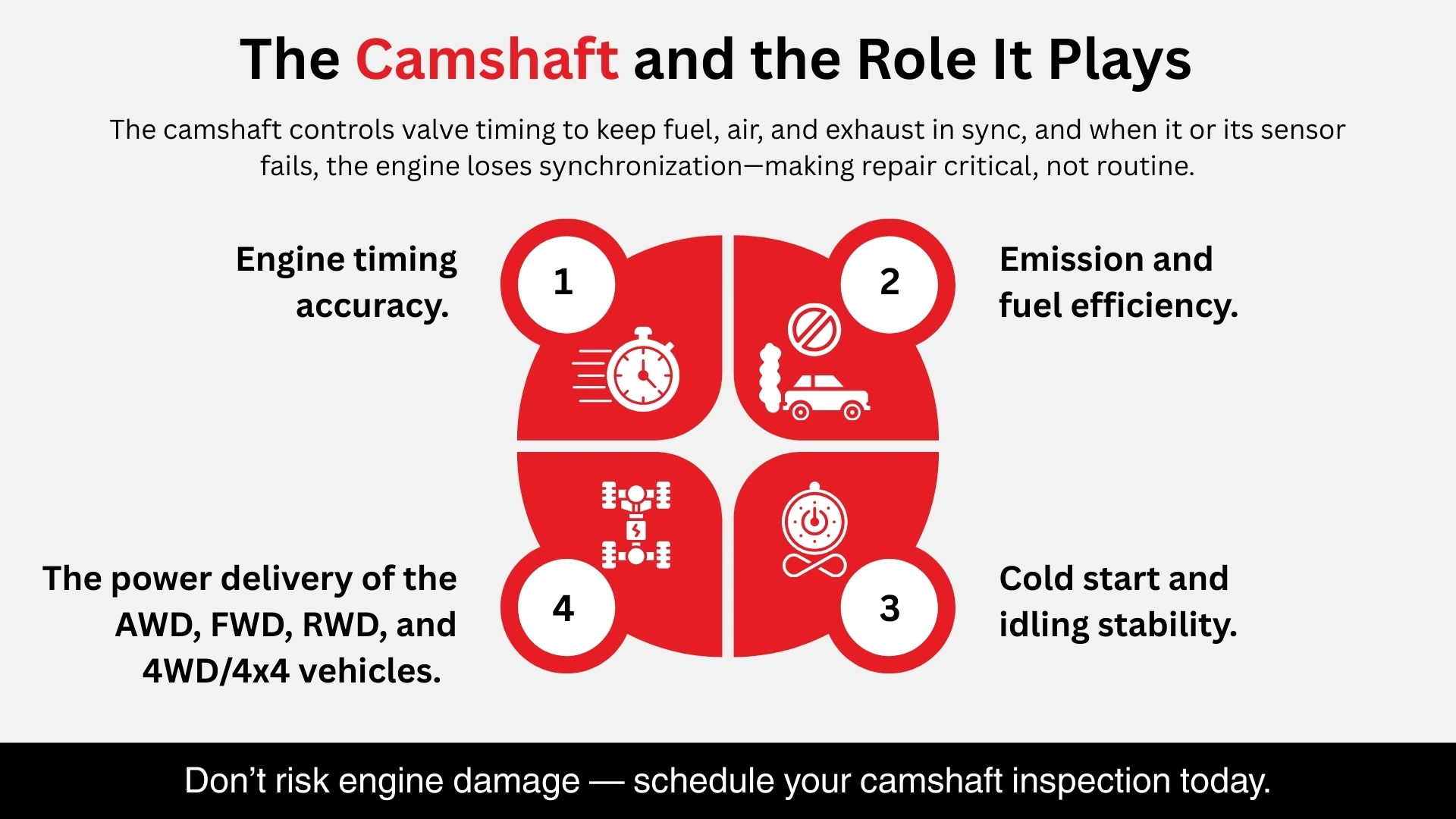

Why Accurate Camshaft Timing Matters

The information from the camshaft position sensor affects much more than engine starting. The ECM relies on it to:

When the timing is accurate, the engine delivers better performance, improved fuel economy, and lower emissions. These signals also support engine management system diagnostics and engine sensor diagnostics, helping technicians monitor how the engine is operating.

What Happens When the Sensor Fails?

If the sensor begins sending incorrect or inconsistent data, the ECM can no longer control these systems precisely. That can lead to engine performance issues such as rough running, reduced fuel efficiency, hesitation during acceleration, or misfires. In some vehicles, the computer may even limit engine power by entering a protective mode to help prevent further damage until the underlying problem is diagnosed and repaired.

Although the camshaft position sensor is a relatively small component, it plays a critical role in keeping the engine running smoothly. A failure doesn't just affect one system; it can disrupt the precise timing the engine depends on every time you start the vehicle or press the accelerator. This is why technicians typically verify sensor operation before recommending a camshaft position sensor replacement.

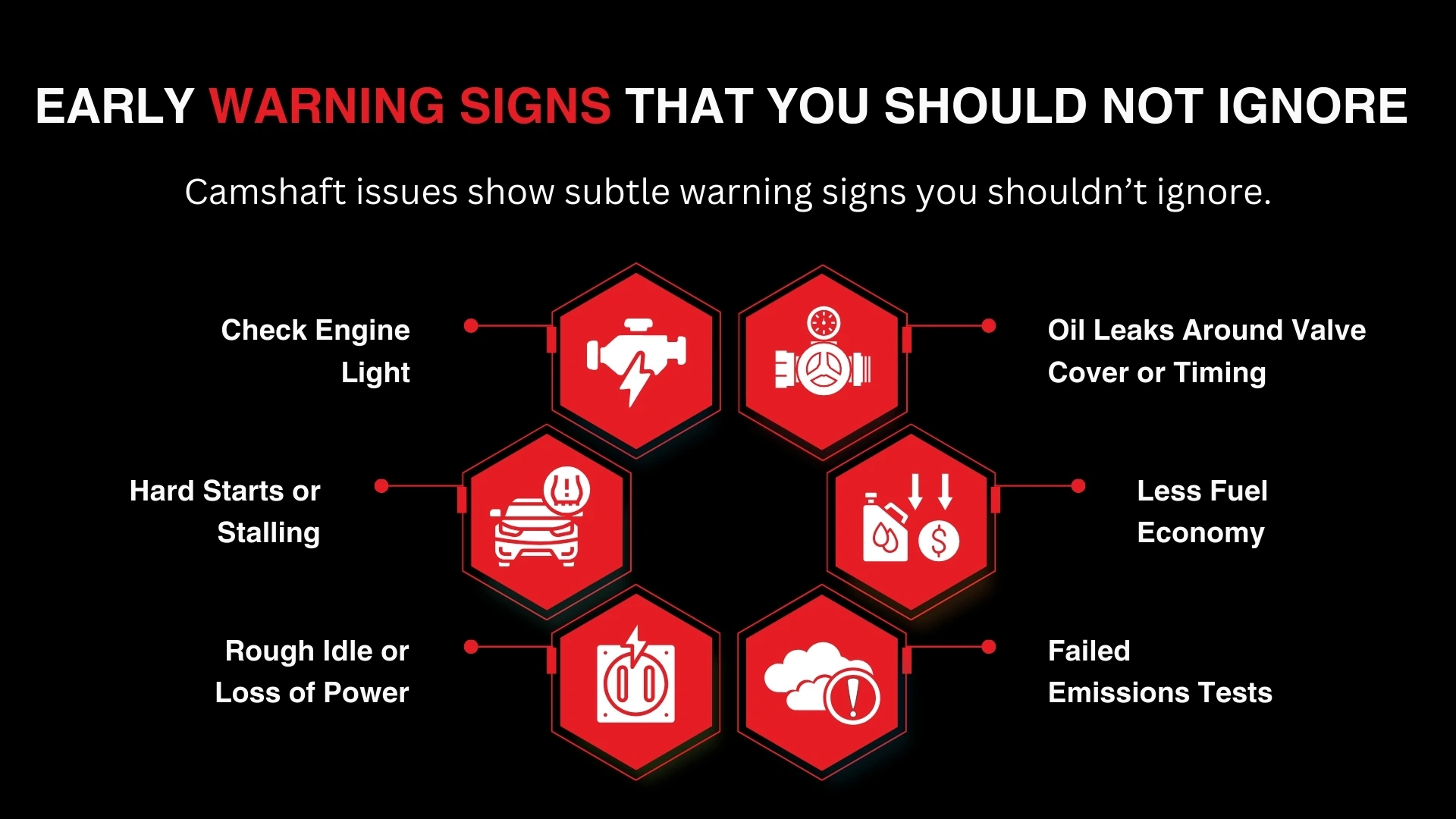

What Are the Signs of a Bad Camshaft Position Sensor?

A failing camshaft position sensor often causes symptoms that develop gradually and can easily be mistaken for other engine problems. Recognizing these warning signs early can help you seek a proper diagnosis before the problem affects engine performance or leaves you stranded.

1. Check Engine Light Comes On

One of the earliest signs of a bad camshaft sensor is an illuminated check engine light. A scan tool may reveal diagnostic trouble codes such as P0340, P0341, P0342, P0343, P0344, P0345, P0346, P0347, P0348, or P0349, which are commonly associated with camshaft position sensor circuit faults. However, these codes do not automatically confirm that the sensor has failed. Wiring problems, damaged connectors, or ECM issues can trigger similar codes, making proper diagnosis essential.

2. Hard Starting or No-Start Condition

A faulty camshaft position sensor can make the engine difficult to start because the engine computer no longer knows the exact position of the camshaft. Without accurate timing information, fuel injection and spark timing may not occur correctly. In some cases, the engine may crank longer than usual, start intermittently, or fail to start altogether, making this one of the more frustrating symptoms of camshaft sensor failure.

3. Rough Idle, Hesitation, or Stalling

Incorrect sensor data can upset the engine's air-fuel and ignition timing, causing an unstable idle. You may notice the engine shaking while stopped, hesitating when accelerating, or occasionally stalling. Although these engine hesitation causes can have several explanations, a failing camshaft position sensor is one possibility that should not be overlooked.

4. Engine Misfires and Loss of Power

When ignition or fuel delivery falls out of sync, one or more cylinders may not fire correctly. This can result in engine misfires, reduced responsiveness, and a noticeable loss of engine power, especially when climbing hills or accelerating. These bad camshaft sensor symptoms often become more noticeable as the sensor continues to deteriorate.

5. Poor Acceleration and Reduced Performance

Because the engine computer depends on accurate camshaft data, even small timing errors can affect how the vehicle responds to the accelerator. Drivers may notice sluggish acceleration, delayed throttle response, or overall engine performance issues during everyday driving. A proper poor acceleration diagnosis helps determine whether the sensor or another component is responsible.

6. Limp Mode or Shifting Problems

Some vehicles enter a protective "limp mode" when the engine computer detects serious timing-related faults. This limits vehicle performance to reduce the risk of engine or transmission damage. Depending on the vehicle, you may also experience delayed or harsh gear changes because the transmission relies on accurate engine data to shift smoothly.

7. Reduced Fuel Economy

A failing sensor can cause the engine to inject more fuel than necessary or deliver it at the wrong time. As combustion becomes less efficient, fuel consumption increases and overall efficiency drops. Although fuel efficiency issues caused by sensors can have several causes, a malfunctioning camshaft position sensor is one that technicians routinely check during diagnosis.

Can a Bad Camshaft Position Sensor Cause an Oil Leak?

Yes, but not in the way many people assume. The sensor itself usually doesn't leak oil. Instead, an oil leak from the camshaft sensor is typically caused by a worn sensor seal, O-ring, or gasket where the sensor passes through the cylinder head. On some engines, a nearby camshaft seal leak can also make it appear that the sensor is leaking. Identifying the true source of the leak is important before replacing any parts.

The camshaft position sensor sits in an opening that is exposed to engine oil, so a rubber seal is used to keep the oil contained. Over time, heat, age, and constant exposure to oil can cause this seal to harden, crack, or shrink. As the seal deteriorates, oil may seep around the sensor and collect on its exterior. In other cases, a camshaft seal oil leak higher up on the engine can travel down and coat the sensor, making it difficult to determine where the leak started.

Oil contamination can also affect sensor performance. When oil reaches the sensor's electrical connector or wiring, it may interfere with the signal sent to the engine computer. This can contribute to an oil leak and check engine light, poor engine performance, or other drivability concerns. While oil contamination does not always damage the sensor immediately, it should not be ignored because prolonged exposure can shorten the sensor's lifespan and make diagnosis more difficult.

Because oil around the sensor does not automatically mean the sensor has failed, technicians inspect both the sensor and the surrounding engine components before recommending a replacement. Confirming whether the problem is a leaking seal, oil contamination of sensors, or an unrelated engine oil leak helps ensure the correct repair is made. The next step is understanding how professionals diagnose a faulty camshaft position sensor with confidence.

How Is a Faulty Camshaft Position Sensor Diagnosed?

A camshaft sensor diagnosis involves more than reading a fault code. Many drivability problems share the same symptoms, so replacing the sensor without proper testing can waste time and money. Technicians use a step-by-step approach that combines automotive electrical diagnostics, visual inspection, and signal testing to identify the actual cause of the problem.

1. Scan for Diagnostic Trouble Codes

The first step is connecting a scan tool to check the vehicle's computer for stored diagnostic trouble codes. These codes provide valuable clues, but they are only a starting point. Technicians also review live engine data to compare the camshaft and crankshaft signals, helping determine whether the sensor is reporting accurate information or if another fault may be present.

2. Inspect the Sensor, Wiring, and Connector

Next, the sensor and its electrical connections are inspected. Damaged wiring, loose connectors, bent terminals, corrosion, or oil inside the connector can interrupt the sensor's signal and produce the same symptoms as a failed sensor. This part of the inspection is an important aspect of sensor and wiring diagnostics and often identifies problems that a scan tool alone cannot detect.

3. Verify the Sensor Signal

If no obvious issues are found, technicians test the sensor's electrical output. They first confirm that the sensor is receiving the correct power supply and a reliable ground using a multimeter. Then, depending on the vehicle, they may use a scan tool or an oscilloscope to verify the sensor is producing a consistent signal as the camshaft rotates. Missing, weak, or erratic signals indicate the sensor or its circuit may not be functioning correctly.

4. Confirm the Root Cause

Before recommending a replacement, technicians rule out other problems that can produce similar symptoms, including timing component issues, damaged reluctor wheels, or faults within the engine control system. This combination of professional engine diagnostics, engine sensor diagnostics, engine electrical troubleshooting, and engine performance diagnostics helps ensure the true cause is identified so only the faulty component is replaced.

When Does a Camshaft Position Sensor Need Replacement?

A camshaft position sensor replacement is recommended when testing confirms the sensor is no longer providing accurate or reliable data. Because many engine problems produce similar symptoms, technicians replace the sensor only after ruling out wiring faults, oil leaks, timing issues, and other possible causes. This approach helps ensure the repair addresses the actual problem instead of replacing a part that is still working properly.

Common causes of replacement include:

Replacing a camshaft position sensor at the right time helps restore accurate engine timing data and prevents ongoing drivability problems. When the decision is based on confirmed testing instead of guesswork, drivers can be confident that the repair addresses the true source of the problem rather than just the sensor failure warning signs.

What Happens During a Camshaft Position Sensor Replacement?

A professional camshaft position sensor replacement follows a systematic process to ensure the correct part is replaced, and the original problem has been resolved. Although the exact procedure varies by vehicle, most repairs follow the same general steps.

1. Confirm the Sensor Is the Problem

Before replacing any parts, technicians verify that the camshaft position sensor is actually at fault. They review diagnostic trouble codes, inspect live engine data, and rule out wiring faults, timing issues, or oil contamination that could produce similar symptoms. This helps prevent unnecessary repairs and ensures replacement addresses the real cause of the problem.

2. Access and Remove the Faulty Sensor

Once the diagnosis is confirmed, the technician locates the sensor and safely gains access to it. The electrical connector is disconnected and inspected for signs of corrosion, damage, or oil contamination before the old sensor is carefully removed. The mounting area is also checked to ensure no damaged seals or debris remain that could affect the new installation.

3. Install the New Sensor

The replacement sensor is installed according to the manufacturer's specifications to ensure a secure fit and reliable operation. If the sensor uses an O-ring or sealing gasket, it is properly seated to help prevent future oil leaks. Care is also taken to reconnect the electrical connector securely, so the engine control module receives a consistent signal.

4. Reassemble and Clear Codes

After the new sensor is installed, any components removed for access are reassembled, and the vehicle's engine computer is updated. Stored diagnostic trouble codes are cleared, so the system can begin monitoring the new sensor under normal operating conditions. This provides a clean starting point for confirming that the repair has resolved the original fault.

5. Verify Proper Sensor Operation

Installing a new sensor is only part of the repair. Technicians verify that the sensor is transmitting accurate, stable signals and that the engine computer is receiving the correct information. This step is an important part of engine performance diagnostics, helping confirm that timing-related functions are operating as intended.

6. Test Drive and Confirm Repair

During the test drive, technicians monitor engine performance, check for returning fault codes, and confirm smooth starting, acceleration, and idle quality. This final stage of engine performance testing under various road conditions verifies that the replacement has restored normal engine operation before the vehicle is returned to the customer.

Importance of Testing After Replacement

Testing after a camshaft position sensor replacement is just as important as the installation itself. A successful repair is confirmed only when the engine performs normally; diagnostic codes do not return, and the original drivability concerns have been resolved. This final verification gives both the technician and the vehicle owner confidence that the underlying problem has been correctly diagnosed and repaired.

How Much Does a Camshaft Position Sensor Replacement Cost?

A camshaft position sensor replacement typically costs between $100 and $250, depending on your vehicle and the work required. In most cases, the replacement sensor costs around $75 to $125, while labor usually ranges from $25 to $125. The exact cost varies based on several factors, so an inspection is the best way to determine what your vehicle needs.

The biggest factor is your vehicle's make and model. On some vehicles, the sensor is easy to access, while on others it is located in a tighter area that requires additional labor. Before recommending an engine sensor replacement, technicians also perform professional engine diagnostics to confirm the sensor is the source of the problem rather than a wiring issue, timing problem, or another engine fault.

The final cost can also increase if related repairs are needed. For example, an oil leak from the camshaft sensor area may require replacing a worn seal or repairing damaged wiring at the same time. Likewise, additional engine performance diagnostics may be necessary if testing reveals another underlying issue. Addressing the root cause during the initial repair helps prevent repeat visits, unnecessary parts replacement, and additional repair costs later.

Why Choose Professional Camshaft Position Sensor Replacement?

Professional replacement helps ensure the correct problem is identified and repaired the first time, reducing the risk of unnecessary parts replacement and recurring engine issues.

Accurate diagnosis before replacement.
Expert sensor diagnostics.
Quality replacement parts.
Correct installation and testing.
Long-term engine reliability.

Key Takeaways Before Replacing a Camshaft Position Sensor

Keep these key points in mind before deciding on a camshaft position sensor replacement:

Don't ignore bad camshaft sensor symptoms.

Confirm the problem through professional engine diagnostics.

Inspect nearby oil leaks before replacing the sensor.

Replace a confirmed failed sensor promptly.

Choose quality replacement parts for reliable performance.

Always verify the repair with post-replacement testing.

An informed diagnosis and the right repair help restore reliable engine performance while preventing unnecessary costs.

Final Thoughts

A camshaft position sensor replacement can restore reliable engine performance when testing confirms the sensor has failed. Because a faulty camshaft position sensor can cause symptoms that overlap with many other engine performance issues, accurate diagnosis is always the first step. Addressing warning signs early, inspecting related problems such as oil leaks, and replacing the sensor, when necessary, can help prevent unnecessary repairs and improve long-term reliability. If you're in Reading, PA, a trusted repair shop like Berks Auto Repair can provide the professional diagnosis needed to make the right repair decision.

If you're experiencing symptoms of a failing camshaft position sensor, professional diagnosis can identify the root cause and ensure the right repair. At Berks Auto Repair, we provide accurate diagnostics, honest recommendations, and quality repairs you can trust.

SCHEDULE YOUR SERVICE NOW

FREQUENTLY ASKED QUESTIONS

— Can I drive with a bad camshaft position sensor?

You may be able to drive a short distance, but its not recommended. Bad camshaft sensor symptoms such as engine stalling, hesitation, or loss of engine power can worsen unexpectedly and leave you stranded. Having the vehicle diagnosed early is the safest option.

+ What causes a camshaft position sensor to fail?

A faulty camshaft position sensor can fail because of age, heat, vibration, oil contamination, moisture, or electrical problems. Damaged wiring, worn connectors, or internal electronic failure are all common causes of camshaft position sensor failure.

+ Can a camshaft position sensor leak oil?

The sensor itself usually doesnt leak oil. In most cases, an oil leak from the camshaft sensor is caused by a worn O-ring, gasket, or nearby camshaft seal leak. Identifying the true source of the leak helps ensure the correct repair is made.

+ Will a bad camshaft position sensor trigger the check engine light?

Yes. A failing sensor commonly triggers the check engine light because the engine computer detects incorrect or missing timing information. A proper check engine light diagnosis is needed to determine whether the sensor, wiring, or another component is responsible before beginning to check engine light repair.

+ Can a bad camshaft position sensor cause rough idling or stalling?

Yes. Incorrect timing signals can disrupt fuel injection and ignition timing, leading to rough idling, hesitation, and engine stalling issues. However, these symptoms can also have other causes, so a rough idle diagnosis is recommended.

+ How do mechanics diagnose a bad camshaft position sensor?

Mechanics use scan tools, visual inspections, and automotive electrical diagnostics to check fault codes, inspect wiring, and test the sensor signal. These camshaft sensor diagnostics help confirm the sensor has actually failed before it is replaced.

+ Should I replace the sensor if the problem comes and goes?

Intermittent symptoms are often early sensor failure warning signs, but they dont always mean the sensor itself is faulty. If testing confirms intermittent camshaft sensor failure, replacement is usually the most reliable long-term solution.

+ Can replacing the camshaft position sensor improve engine performance?

Yes, if the sensor is the source of the problem. Replacing a confirmed faulty sensor can restore proper engine timing, improve drivability, eliminate many engine performance issues, and verify the repair through post-replacement engine performance testing.
