Cooling System Pressure Test: What It Reveals

What a Cooling System Pressure Test Reveals About Your Vehicle: Insights from a Reading, PA Diagnostic Specialist

A pressure test can detect any hidden leaks, loss of pressure, and any issues with the radiator, hoses, thermostat, or water pump. Understand what pressure testing can tell you, why it is important, and when Reading, PA drivers should come in and get their cooling system inspected at Berks Auto Repair.

What a Cooling System Pressure Test Reveals About Your Vehicle

A cooling system pressure test can help determine if your vehicle's cooling system is holding the pressure that it is designed to and can help detect hidden coolant leaks. It can detect radiator leaks, radiator hoses, water pumps, thermostat housings, coolant reservoirs, heater hoses, and other issues before a small leak turns into engine overheating. A pressure test is particularly helpful for drivers in Reading, PA. When the coolant continues to leak, the temperature gauge is high, or the person is noticing an engine temp warning light with no leak.

At Berks Auto Repair, our process for diagnosing cooling system problems helps to identify if your vehicle requires a simple cooling system hose repair, radiator repair, water pump replacement, thermostat replacement, or cooling system coolant leak repair.

What Is a Cooling System Pressure Test?

A cooling system pressure test is a diagnostic test in which a pressure test machine is used to fill the cooling system with pressure to see if the cooling system can hold the pressure. A drop in the pressure during testing could be a result of a coolant leak or some other cooling system issue that needs to be diagnosed.

A coolant pressure test can be used to uncover small or hard-to-see leaks that might not be obvious under cold, parked vehicles, unlike a simple visual inspection.

What is Included in a Cooling System Pressure Test?

Technicians can use a pressure test to get some insights into the following:

Radiator leaks.

Radiator hose leaks.

The water pump leaks.

Thermostat housing leaks.

Leaks in the coolant reservoir or expansion tank.

Heater hose leaks.

Heater core leaks.

Cool system hoses/seals.

Unexplained coolant loss.

Cooling-system pressure loss.

The test is not a stand-alone diagnostic for all causes of overheating. Rather, it supplies valuable information that can be used in conjunction with a cooling system for inspection, vehicle diagnostics, and component testing.

Why Does Your Car Need a Pressure Test?

Your engine generates a lot of heat during operation. The cooling system moves the heat around the engine and the radiator to help regulate the heat. Coolant leaks can lead to decreased coolant flow, and coolant loss can cause engine temperatures to increase.

If you have any of these symptoms, you might need a cooling system pressure test:

Low coolant levels.

Regularly required to add coolant.

Hydraulic fluid under the car.

A sweet smell comes from the car's hood.

Steam coming from under the hood.

An overheating engine.

Temperature fluctuations.

An engine temperature warning light.

Poor cabin heat.

An empty coolant reservoir.

Coolant loss due to recent repairs to the cooling system.

Crusty residue around hoses, the radiator, or the water pump.

Do not simply add additional coolant to the vehicle to correct the problem if it is running hot. This coolant may just be leaking back out.

Typical Symptoms of Coolant Leaks and the Indications

Vehicle Symptom	Cooling-System Problem	Next Step Suggestions
Coolant continues to drain.	Radiator, hose or leaking component	Pressure test cooling system
The engine overheats.	Cooling fan issue	Engine overheating diagnosis
Sweet coolant smell	External coolant leak or heater core problem	Coolant leak diagnosis
Coolant under the vehicle	Radiator, hose, water pump, or reservoir leak	Pressure testing and inspection
Temperature warning light	Engine operating above its normal temperature	Cooling system inspection
Poor cabin heat	Low coolant, thermostat, heater core, or circulation issue	Cooling system diagnostic
Steam under the hood	Leaking or overheating coolant.	Stop driving and find an expert diagnosis
Repeated coolant top-ups	Ongoing coolant loss	Coolant pressure test

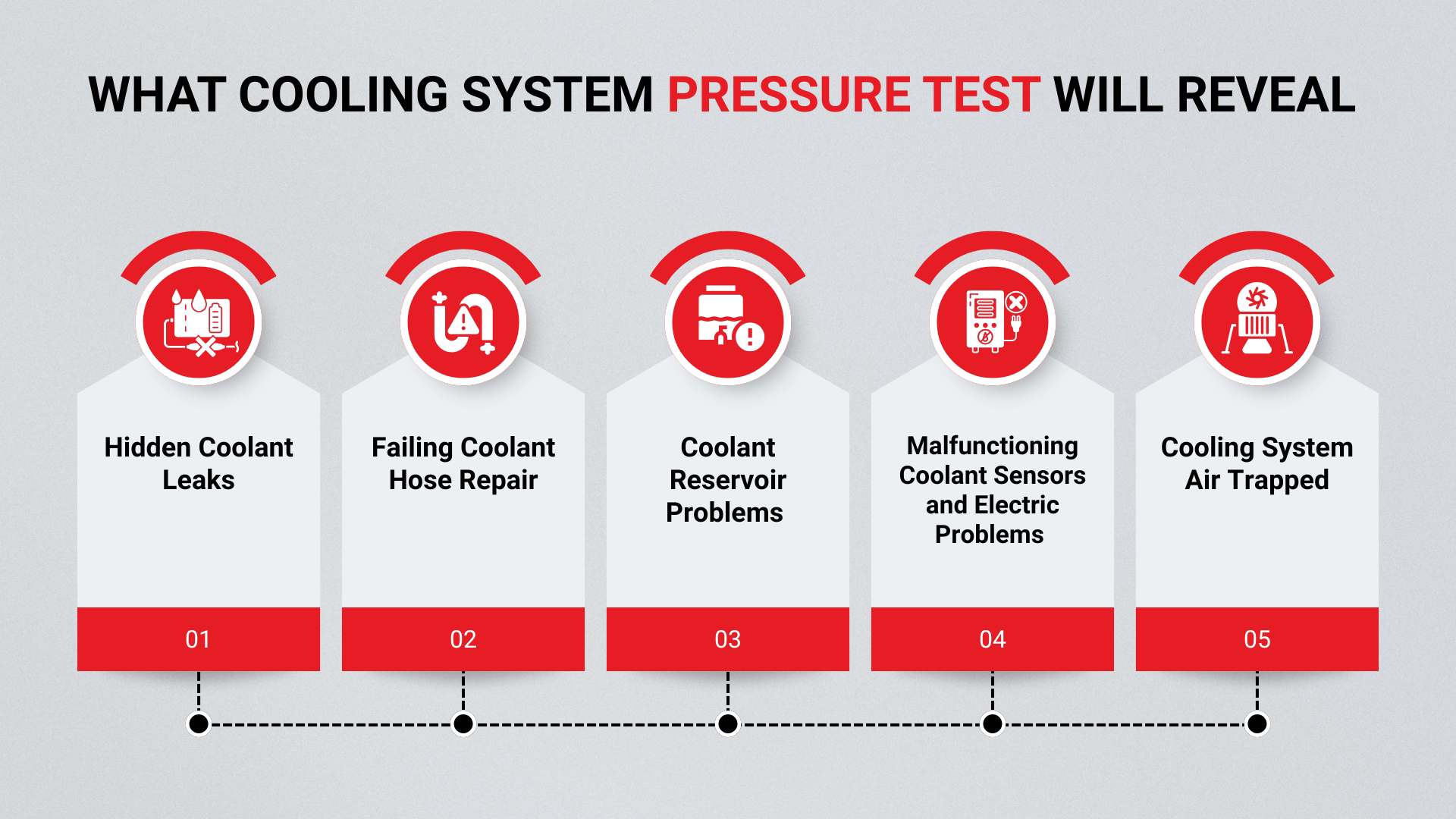

What Can a Pressure Test Reveal?

1. Radiator Leaks

The radiator removes heat from the engine coolant. Coolant can leak through cracks, corrosion, broken tanks, or failed seams or connections. A pressure test of the radiator can help determine if the radiator is losing pressure. Radiator repair or replacement may be necessary for the repair depending on the design and condition of the radiator. If there is a leak in the radiator, it should not be ignored, as a lot of leakage can eventually lead to engine overheating.

2. Radiator Hose Leaks

Radiator hoses are subject to high temperatures and pressure. With time, rubber may become brittle, cracked, swollen, or otherwise damaged. A pressure test may be performed to help determine if a hose or connection is leaking. If deterioration is confirmed, replacement of the radiator hoses may be the answer. A small leak in the small hose can turn into a big loss of coolant problem if the hose bursts all the way through while driving.

3. Water Pump Leaks

The water pump pumps coolant through the engine and cooling system. When the pump fails, it can leak from around the pump seal or around the pump housing. A pressure test can aid in locating a leak in the water pump area where the coolant is leaking. Technicians can then conduct further water pump diagnostics to see if the pump has failed. The repair can be either a water pump repair or a water pump replacement, depending on the vehicle and condition.

4. Thermostat Housing Issues

Coolant flow is regulated by the thermostat with regard to engine temperature. A bad thermostat can lead to abnormal operating temperatures, and a broken thermostat housing or seal can lead to coolant leaks. The technician might also perform a pressure test, diagnose a thermostat, or perform other tests on the cooling system. Based on the results, you can head to the thermostat for repair or replacement.

5. Coolant System Leaks

The excess coolant is stored in the coolant reservoir, and the changes in volume caused by heating and cooling are taken up by the reservoir. Coolant loss can result from a crack in the reservoir, a leak in the expansion tank, a loose or damaged cap, or a leak in a connection. If the leak is not immediately apparent during the visual inspection of a cooling system, pressure testing can assist in determining these issues.

6. Heater Hose & Core Leaks

A leaky heater hose can lead to a loss of coolant, and leaking in the heater core can manifest in the passenger compartment. Symptoms of a heater core may include: The cabin is filled with sweet cool air, fogging windows, damp carpet, reduced heater performance, and unexplained coolant loss. Heater core leak diagnosis may require further testing, and if damaged heater, hose replacement may be needed.

What if the pressure test is negative?

A normal pressure test is not a guarantee that the cooling system is completely trouble-free. Sometimes leaks are only noticed during hot conditions while the engine is running or during specific engine operation conditions. Coolant can also be leaking internally and not through an obvious external leak.

Technicians might conduct further engine diagnostics, cooling system testing, temperature testing, or other tests if the loss continues after a normal pressure test. That's why professional coolant leak diagnosis should take all the vehicle's symptoms into account, rather than just one.

Is a pressure test an accurate vehicle overheating diagnostic tool?

A pressure test can help determine if coolant loss or a cooling-system leak is a cause of overheating but will not rule out all causes of overheating. An overheating vehicle could have problems involving the following:

Low coolant.
Radiator restrictions.
A failed water pump.
A faulty thermostat.
Cooling fan problems.
Damaged hoses.
Temperature sensor issues.
Electrical problems.
Internal engine problems.

Pressure testing may thus be required in addition to other diagnostic tests to make a full diagnosis of engine overheating.

Cooling System Pressure Test vs. Coolant Flush

A pressure test and coolant flush have completely different purposes. A cooling system pressure test finds potential pressure loss and leaks. The Coolant Flush will replace the old coolant and contaminants and can be filled with fresh coolant based on the vehicle manufacturer's specifications.

The engine cooling system may be flushed as part of regular maintenance if the coolant is old, dirty, or needing replacement. But a coolant flush will not fix a leaky radiator, water pump, hose, thermostat housing, or coolant reservoir.

If coolant in the system is found to be a mixture of degraded and leaking, then the leak should be diagnosed and corrected at the same time as the appropriate service is performed on the cooling system.

How Pressure Testing Helps Prevent Engine Overheating

Engine temperatures are kept within safe operating limits with the use of a cooling system. If the coolant leaks out, the system cannot transfer heat efficiently. Overheating is a possible result of continued loss of coolant and can result in significant damage to the engine.

This is why early cooling system repair can be a great deal more than a convenience, as it can help stop a relatively minor component failure from becoming a major engine repair. Other maintenance items that you must keep in mind to help prevent stranded vehicles include regular cooling system maintenance and periodic checks.

Older, or high-mileage vehicles can also benefit from proactive cooling system preventive maintenance to minimize failure risk.

What Happens During a Cooling System Pressure Test?

Berks Auto Repair uses the following steps during a typical diagnosis:

This approach can help narrow down a general symptom like, "My car is losing coolants," to a specific diagnosis and repair plan.

Cooling System Repair in Reading, PA

Berks Auto Repair is a cooling system pressure test service provider in Reading, PA, that can assist with the diagnosis of cooling system leaks, overheating issues, and more. We can fix problems with these parts of your car's cooling system: radiator, hoses, water pumps, thermostat, cooling fan, heater hoses, coolant reservoir, and other parts.

Diagnosis is always the first step, whether it is radiator leak repair, water pump replacement, thermostat replacement, coolant leak repair or a general cooling system service. A driver who's searching for a local auto repair shop in Reading, PA, can easily find the root cause of a cooling system issue early and avoid a bigger repair in the future.

To learn more about the automotive issues you can read our blogs:

Avoid Costly Engine Failures in Reading, PA: Expert Cylinder Head Gasket Repairs at Berks Auto Repair

Is Your Water Pump Warning Before It Fails? A Reading, PA Mechanic’s Guide to Early Signs and Preventive Replacement

Why Thermostat Issues Are the Hidden Cause of Heating & Cooling Problems for Drivers in Reading, PA and Berks County

SCHEDULE YOUR SERVICE NOW

FREQUENTLY ASKED QUESTIONS

— What does a pressure test of a cooling system reveal?

A cooling system pressure test will indicate if the cooling system is still able to maintain pressure and also help determine the cause of coolant leaks in the radiator, hoses, water pump, thermostat housing, reservoir, and the cooling heater system.

+ When would you need to have a coolant pressure test?

A coolant pressure test can be used to help determine the cause of the problem if the vehicle is having repeated cooling system problems such as overheating, an engine temperature warning light, coolant leakage under the vehicle, or coolant smell.

+ Does a pressure test detect a radiator leak?

Yes. A radiator pressure test is a good way to detect leaks that might not be seen at a visual inspection, such as a leak from a radiator tank, seam, connection, or other item associated with the radiator.

+ Does a pressure test show a water pump leak?

A pressure test may be useful in identifying a water pump area in which a coolant is leaking. Further inspection may be necessary to check if it is a water pumps leak.

+ Does a pressure test show a water pump leak?

Pressure testing is used to test most of the time for pressure loss and leakage in the cooling system. There are extra diagnostic checks normally involved in thermostat operation.

+ Is it possible for a coolant leak to lead to engine overheating?

Yes. If coolant leaks are severe or continue for long, you may have less to circulate through the engine and may be more likely to overheat.

+ How do I find a cooling system pressure test in Reading, PA?

Berks Auto Repair provides drivers in Reading, PA, with cooling system inspection, diagnostic, maintenance, and repair services. A pressure test by a professional can help identify the source of an overheating or leaking coolant, if this is occurring.

+ What can I do to avoid cooling system issues?

To use the correct coolant, to keep an eye on coolant levels, to take care of warning lights as soon as they appear, to replace aging hoses and components, and to have an unexplained loss of coolant investigated and replaced rather than topping off the reservoir.
