Intake Manifold Gasket Replacement: Signs, Cost & Repair Guide

Intake Manifold Gasket Replacement: Signs, Cost, and Repair Guide

A failing intake manifold gasket can start with a small leak but gradually affects how your engine runs, idles, and performs. Learn about the warning signs, understand when repair or replacement is needed, and how much it costs to replace one.

A Gasket Failure Can Become an Engine Failure

The intake manifold gasket is a small but important seal between the intake manifold and the engine’s cylinder heads. It helps maintain the vacuum needed for proper engine operation while sealing passages that carry fluids such as engine coolant. When the gasket fails, unwanted air or fluid leaks can interfere with the engine’s normal operation.

That can lead to engine performance issues and, if the problem is ignored, more serious engine concerns. Understanding what the gasket does and recognizing the signs of failure can help you address the problem before it gets worse. This article covers the common symptoms, diagnosis, repair or intake manifold gasket replacement, and factors that affect the cost.

What Is an Intake Manifold Gasket?

An intake manifold gasket is a sealing component that sits between the intake manifold and the engine’s cylinder head. It helps seal the surfaces where the two components meet, preventing unwanted air or fluid leaks around the intake and coolant passages.

The intake manifold itself is an important part of an internal combustion engine. It receives air after it passes through the air filter and throttle body, then distributes that air through separate passages, or runners, to the engine’s cylinders. The gasket creates a tight seal around these passages so the manifold can do its job properly.

Most intake manifold gaskets are designed to withstand exposure to engine heat, oil, and coolant. A quality gasket forms a durable seal around the ports and runner openings, helping maintain the conditions the engine needs for proper operation.

When that seal becomes damaged or worn, air or coolant can leak where it should not. Depending on the type and severity of the failure, this can affect how the engine runs and may eventually require an intake manifold gasket replacement.

What Does the Intake Manifold Gasket Do?

The main job of the intake manifold gasket is to keep a tight seal between the intake manifold and the engine. This allows the intake system to maintain the vacuum and air pressure needed for proper engine operation while helping prevent coolant or air from escaping through the connection.

As the engine runs, air travels through the throttle body and into the intake manifold. From there, it moves through the manifold’s runners toward the cylinders. The gasket seals the areas around these passages, so the engine receives air as intended.

A proper seal also helps protect against leaks that can interfere with engine operation. When an intake manifold gasket begins to fail, unwanted air or fluid can enter or escape through the damaged area. This can contribute to drivability and engine performance issues, making timely intake manifold gasket repair or replacement important when a failure is confirmed.

How Can a Gasket Leak Affect Your Engine Performance?

A leaking intake manifold gasket can disrupt the engine’s intended air-fuel balance by allowing unwanted air into the intake system. Because the engine depends on the right amount of air and fuel for combustion, a leak can interfere with how smoothly and efficiently it runs.

This may show up as hesitation when you accelerate, rough or unstable running, misfires, reduced power, or declining fuel economy. You may feel that the vehicle is less responsive than usual or notice that it takes more fuel to cover the same distance. These engine performance issues can have several causes, so they should not automatically be blamed on the gasket.

When a failed gasket is confirmed as the source, engine performance repair focuses on restoring the proper seal rather than adding performance beyond the vehicle’s original design. A proper intake manifold gasket replacement can help the engine return to normal operation, which may improve gas mileage and restore engine power when the leak was responsible for those problems.

Most Common Signs of Intake Manifold Gasket Failure

The most common intake manifold gasket failure symptoms include coolant leaks, engine stalling, overheating, poor fuel economy, loss of acceleration, and rough idling. These signs can have other causes too, so accurate diagnosis is important before replacing the gasket.

1. Coolant Leaks

Some intake manifolds have passages that carry engine coolant, which means the gasket must seal against both air and coolant leaks. If the gasket becomes worn or damaged, coolant can seep through the failed seal and leak externally into the engine bay or internally into the intake manifold and combustion chamber.

A coolant leak may produce a distinct coolant smell, while a more serious leak can cause visible puddles or steam. If coolant enters the combustion chamber, you may also notice white smoke from the exhaust. Losing too much coolant can eventually contribute to engine overheating.

2. Engine Stalling

A damaged intake manifold gasket can create a vacuum leak and interfere with the engine’s intended air-fuel balance. When this happens, the engine may struggle to maintain a steady idle or continue running, potentially causing it to stall unexpectedly while driving.

However, stalling can result from many different problems, so it should not automatically be blamed on the gasket. A technician can perform appropriate testing, including a smoke test, to look for vacuum leaks. This helps determine whether the intake system is leaking and whether the gasket is actually responsible.

3. An Overheating Engine

Overheating can occur when a failing intake manifold gasket allows coolant to leak internally. In this situation, you may not see coolant pooling beneath the vehicle, but the engine can still lose coolant and begin running hotter than it should. Your dashboard temperature gauge or warning light may alert you to the problem.

An overheating engine should be checked promptly because continued overheating can lead to more serious damage. Other possible causes should also be ruled out, including problems with the thermostat or other cooling-system components. Proper diagnosis helps ensure the right repair is made.

4. Poor Fuel Economy

A faulty intake manifold gasket can contribute to an incorrect air-fuel balance when it allows unwanted air to enter the intake system. When the engine is no longer receiving the conditions it needs for proper operation, it may use more fuel than normal to keep running.

You may notice that you are filling the tank more often even though your normal driving habits have not changed. If poor fuel economy appears alongside other intake manifold gasket leak symptoms, the gasket and intake system should be checked. Addressing the underlying problem can help restore normal engine operation and improve gas mileage.

5. Loss of Acceleration

A failing intake manifold gasket can also affect how the engine responds when you press the accelerator. You may notice that the vehicle initially responds but then hesitates, loses power, or accelerates unevenly instead of delivering consistent power.

A noticeable loss of acceleration should not be ignored, especially when it occurs alongside stalling, rough idling, or other symptoms. These engine performance issues can have several possible causes, so a proper inspection is needed to identify the source. If the gasket is confirmed as the problem, timely intake manifold gasket replacement can help restore proper operation.

6. Rough or Unstable Idling

A leaking intake manifold gasket can allow unwanted air into the intake system, which may make it difficult for the engine to maintain a steady idle. You may notice unusual vibrations, shaking, or an RPM that rises and falls without an obvious reason.

Rough idling does not always point to a gasket problem, since several engine issues can produce similar symptoms. If rough running continues or appears with other signs of a gasket leak, professional engine misfire diagnosis and intake-system testing can help identify the cause before the problem becomes more difficult to address.

These symptoms can overlap with other engine or cooling-system problems, which is why replacing a gasket based on symptoms alone is not recommended. Accurate diagnosis can confirm whether the intake manifold gasket is actually failing and determine the appropriate repair.

What Causes an Intake Manifold Gasket to Fail?

An intake manifold gasket can fail because of age, repeated heat exposure, overheating, improper installation, coolant contamination, or problems with the gasket material itself. Over time, these conditions can weaken the seal and allow air or coolant to leak.

Several factors can contribute to gasket failure, with the most common ones including:

1. Age and Normal Wear

As a vehicle accumulates miles, repeated heating and cooling cycles can cause the gasket material to become brittle and lose its ability to maintain a proper seal. Older or high-mileage vehicles may be more prone to this type of wear.

2. Engine Overheating

An engine that has overheated can place additional stress on the intake manifold gasket. Excessive heat may cause the gasket material to break down prematurely, eventually leading to leaks or damage to the sealing surface.

3. Coolant Contamination

Contaminated coolant can contain dirt, rust, or other particles that restrict narrow coolant passages. This can create localized hot spots and place additional stress on the gasket, potentially contributing to premature failure.

4. Improper Installation

A gasket must sit and seal correctly against the mating surfaces. If it is installed incorrectly or does not seat properly during a previous repair, leaks can develop much sooner than expected and may require intake manifold gasket repair.

5. Gasket Material Problems

Not all gasket materials provide the same level of durability. A manufacturing defect or low-quality material can cause a gasket to deteriorate prematurely, which is why using a quality, vehicle-appropriate gasket matters when replacement is needed.

6. Damaged Sealing Surfaces

The gasket depends on the intake manifold and cylinder head surfaces to form a proper seal. If either surface becomes damaged, distorted, or unable to sit flush against the other, even a new gasket may not seal correctly.

Can You Drive with an Intake Manifold Gasket Leak?

You may be able to drive with an intake manifold gasket leak, but it is best to have the problem diagnosed promptly. A leak can affect the engine’s air-fuel balance and may lead to rough running, misfires, poor fuel economy, or worsening drivability.

Continuing to drive with an unresolved leak can also put additional stress on the engine, particularly if the problem is contributing to overheating or other operating issues. The longer the underlying problem continues, the greater the chance that related components may be affected.

Because similar symptoms can come from several different faults, accurate engine diagnostics should come before deciding on an intake manifold leak repair. Proper engine troubleshooting can confirm whether the gasket is actually responsible and help determine the right repair.

How Is an Intake Manifold Gasket Leak Diagnosed?

An intake manifold gasket leak is diagnosed by combining a visual inspection with tests that can identify air or coolant escaping from the intake system. Because several engine problems can cause similar symptoms, engine diagnostics help confirm whether the gasket is actually responsible before repair or replacement is recommended.

Here are four common ways a technician may narrow down the source of an intake manifold leak:

1. Visual Inspection

A technician first checks the intake manifold area for visible signs of trouble, such as coolant residue, pooling fluid, damaged components, or signs of a failed seal. Nearby vacuum lines, PCV hoses, and connections may also be inspected to rule out other possible sources of a leak.

2. Cooling System Pressure Test

When a coolant leak is suspected, a pressure test can help determine whether the cooling system is losing pressure. If coolant is escaping around the intake manifold area, the test can help a technician locate the source and determine whether the gasket may be involved.

3. Smoke Test

A smoke test is particularly useful for finding vacuum leaks. Smoke is introduced into the intake system, and a technician watches for it escaping from an area where the system should be sealed. This can help pinpoint an intake leak that may not be visible during a normal inspection.

4. Diagnostic and Leak-Down Testing

A scan tool can provide useful information when a vehicle has a check engine light, misfires, or other performance problems. When an internal coolant leak is suspected, a leak-down test can provide additional information about what is happening inside the cylinders.

Together, these methods support a more accurate intake manifold leak diagnosis rather than relying on symptoms alone.

Repair or Replacement: Which Is the Better Choice?

Whether you need an intake manifold gasket repair or intake manifold replacement depends on what the diagnosis finds. If the manifold is structurally sound and the gasket is the only failed component, replacing the gasket is usually the appropriate repair. If the manifold itself is damaged, replacing it may be a more reliable choice.

When Repair the Is Right Choice

A gasket replacement makes sense when the intake manifold is still in good condition, and the leak is clearly coming from the gasket or seal. The mating surfaces should be suitable for creating a proper seal, with no significant cracks, warping, or other damage.

In this situation, the manifold can be removed, the sealing surfaces cleaned and inspected, and a new gasket installed correctly. The fasteners should also be tightened according to the appropriate sequence and specifications. Simply applying sealant around an external leak is not a dependable substitute for replacing a failed gasket.

When Replacement Is the Smarter Option

Intake manifold replacement is generally the better option when the manifold itself can no longer provide a reliable seal. Cracks, warping, damaged sealing surfaces, deteriorated coolant passages, broken vacuum ports, or damaged mounting points can all make reusing the manifold a poor choice.

Replacement may also offer better long-term value when the manifold is old or has already caused repeated problems. Reusing a questionable component can mean paying for the same labor again if another leak develops.

Repair vs. Replacement: A Quick Comparison

The best choice depends on the condition of the parts, the extent of the damage, and the long-term reliability of the repair. Here is a quick side-by-side look at the factors that can influence that decision:

Repair

Main problem: Failed gasket or seal.

Manifold condition: Structurally sound.

Sealing surface: Flat and usable.

Typical approach: Replace gasket and seals.

Upfront cost: Usually lower.

Long-term value: Best when manifold is sound.

Replacement

Main problem: Damaged manifold.

Manifold condition: Cracked, warped, or deteriorated.

Sealing surface: Damaged or unable to seal.

Typical approach: Replace manifold and gasket.

Upfront cost: Usually higher.

Long-term value: Better when damage may cause repeat failure.

The goal is not simply to choose the cheaper option. A sound manifold generally calls for a proper intake manifold gasket replacement, while a damaged manifold may justify replacing the entire component to achieve a reliable repair.

What Does Intake Manifold Gasket Replacement Cost?

There is no single intake manifold gasket replacement cost, but the average repair commonly falls around $350–$700, with the gasket itself often costing about $20–$150 and labor making up much of the remaining cost. The final price depends on your vehicle and how accessible the intake manifold is.

Labor can be a significant part of the bill because replacing the gasket may require removing the intake manifold, cleaning the sealing surfaces, installing the new gasket, and putting everything back together correctly. The job may take roughly 2–4 hours, depending on the vehicle and the work required.

If you're comparing an intake manifold gasket replacement estimate, remember that a lower quote is not always the better value. The quality of the part, the condition of the manifold, and whether additional problems are found during diagnosis can all affect the final cost.

What Factors Affect the Cost of Gasket Replacement?

The cost can vary considerably from one vehicle to another. These are the main factors that can change what you ultimately pay:

Ultimately, an accurate estimate depends on the vehicle and what the inspection finds.

When Should You Stop Driving and Get It Checked?

Some intake manifold gasket leak symptoms may be manageable for a short time, but certain signs mean you should stop driving and have the vehicle inspected promptly. These symptoms can point to a more serious engine problem or worsening leak.

Engine temperature starts climbing while driving.

The check engine light begins flashing while driving.

The engine shakes noticeably or misfires badly.

The vehicle stalls or struggles to restart.

Coolant begins leaking or disappearing unusually quickly.

White steam or a strong coolant smell appears.

If these warning signs occur, proper engine troubleshooting can determine whether an intake manifold gasket replacement is actually needed, or another problem is causing the symptoms.

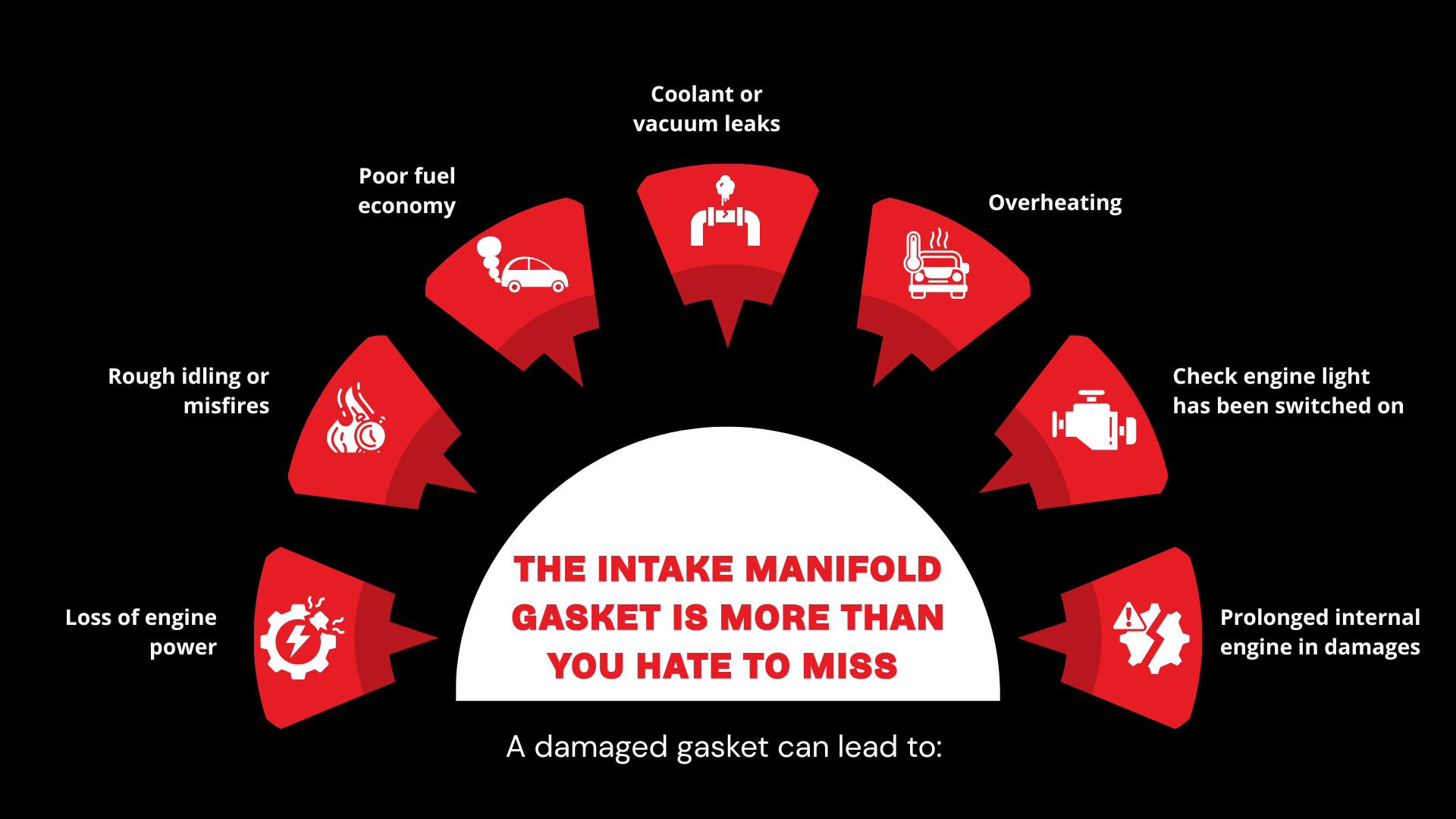

What Happens If You Ignore a Failing Intake Manifold Gasket?

Ignoring a failing intake manifold gasket can allow drivability problems to worsen and may place additional stress on related engine components. The outcome depends on the type and severity of the leak, but addressing persistent symptoms early can help prevent more extensive repairs.

1. Worsening Drivability and Fuel Economy

A growing vacuum leak can further disrupt the engine’s air-fuel balance. You may notice rougher idling, hesitation, unstable engine speed, reduced acceleration, or declining fuel economy as the problem progresses.

2. Potential Catalytic Converter Damage

A persistent engine misfire can allow unburned fuel to enter the exhaust system. This can create excessive heat around the catalytic converter and potentially shorten its service life, adding another repair to the original problem.

3. Increased Risk of Engine Overheating

If the gasket is leaking coolant, continued coolant loss can contribute to overheating. An overheated engine may suffer damage to components such as the cylinder head or head gasket, depending on how severe and prolonged the overheating becomes.

4. Poor Power or Unexpected Stalling

As the leak worsens, the engine may struggle to maintain a stable idle or produce consistent power. Stalling or weak acceleration can also become a safety concern, especially when pulling into traffic or trying to accelerate quickly.

Key Takeaways

An intake manifold gasket may be a small component, but its seal plays an important role in proper engine operation. Intake manifold gasket leak symptoms such as rough running, misfires, poor acceleration, coolant leaks, or a check engine light should not be ignored. Accurate engine diagnostics can help determine whether the gasket is responsible, or another component is causing the problem.

If the gasket has failed, an intake manifold gasket replacement may restore the proper seal and help prevent the problem from progressing. Your intake manifold gasket replacement cost will depend on your vehicle, labor time, parts, and the condition of related components. Getting the problem diagnosed early can help you choose the right repair and protect your vehicle’s long-term reliability.

Fix the Leak Before It Becomes a Bigger Problem!

A proper diagnosis can help you avoid unnecessary repairs and determine what your vehicle actually needs. At Berks Auto Repair, we focus on accurate diagnostics, honest recommendations, and dependable repairs using quality parts. Our goal is to help keep your vehicle safe, reliable, and ready for the road.

You can also explore these related services:

Rear main seal leak repair for another source of engine oil leaks.

Oil pump replacement to address oil pressure concerns.

Camshaft position sensor service for related engine issues.

SCHEDULE YOUR SERVICE NOW

FREQUENTLY ASKED QUESTIONS

— What is an intake manifold gasket and what does it do?

An intake manifold gasket seals the intake manifold to the engine’s cylinder head. It helps maintain the proper seal around air and coolant passages, allowing the engine to maintain the conditions it needs for proper operation.

+ What are the most common intake manifold gasket leak symptoms?

Common intake manifold gasket leak symptoms include rough idling, engine misfires, stalling, poor acceleration, reduced fuel economy, coolant leaks, and overheating. The exact symptoms depend on where the gasket has failed and whether it is leaking air, coolant, or both.

+ Can a bad intake manifold gasket cause a misfire or check engine light?

Yes, a failing intake manifold gasket can contribute to engine misfires and trigger the check engine light. An intake leak can disrupt the engine’s air-fuel balance, while the resulting misfire or lean condition may be detected by the vehicle’s engine control system.

+ Can an intake manifold gasket leak cause coolant loss or overheating?

Yes, an intake manifold gasket leak can cause coolant loss or contribute to overheating engines where coolant passages run through the intake manifold. If coolant continues to escape, the engine may overheat, making prompt diagnosis important to prevent further damage.

+ How is an intake manifold gasket leak diagnosed?

An intake manifold leak diagnosis may involve a visual inspection, diagnostic scanning, cooling-system pressure testing, or a smoke test for vacuum leaks. A technician may also inspect related components because similar engine performance issues can have several different causes.

+ How long does intake manifold gasket replacement take?

Intake manifold gasket replacement commonly takes a few hours, but the exact time depends on the vehicle and engine layout. Access to the manifold, surrounding components, cleaning requirements, and any additional problems found during the repair can all affect labor time.

+ How much does intake manifold gasket replacement cost?

The intake manifold gasket replacement cost commonly falls around $350–$700, although actual costs vary by vehicle, parts, labor, and repair complexity. An intake manifold gasket replacement estimate may change if the manifold or related components also need attention.

+ Can you drive with an intake manifold gasket leak?

You may be able to drive a short distance with a minor leak, but continued driving is not recommended. Worsening misfires, coolant loss, overheating, stalling, or poor drivability can indicate a more serious problem that needs prompt engine diagnostics.
