Transfer Case Service: Fluid Change, Maintenance & Repair Guide

Transfer Case Service: What AWD and 4WD Owners Need to Know

You may never think about your transfer case until your AWD or 4WD system stops working the way it should. By then, a transfer case fluid issue or developing mechanical problem may have already caused avoidable wear. Knowing what your transfer case needs and when to act can help you catch problems before they become costly.

Is Transfer Case Service Necessary?

Yes, regular transfer case service is generally recommended for most AWD and 4WD vehicles. The transfer case helps distribute power between the front and rear axles, and keeping the transfer case fluid at the proper level and in good condition helps protect its internal parts and support reliable operation. Following the vehicle manufacturer’s maintenance recommendations can help you avoid unnecessary wear and catch potential problems before they become more serious.

Like other drivetrain components, the transfer case needs attention as your vehicle accumulates miles and use. A transfer case fluid change and inspection can help maintain the system before problems develop, especially when your vehicle is used for towing, off-road driving, or other demanding conditions. In this guide, we’ll explain what the transfer case does, how its fluid is maintained, common warning signs, service and repair costs, and when you should have it checked.

What Is a Transfer Case and What Does It Do?

A what is a transfer case question has a simple answer: it is a specialized gearbox that helps an AWD or 4WD vehicle send engine power to both the front and rear wheels. It sits behind the transmission and receives power from it, then distributes that power through the front and rear driveshafts to the axles. This allows the vehicle to provide all-wheel or four-wheel drive when needed.

The transfer case works with the transmission but serves a different purpose. The transmission manages engine power and vehicle speed, while the transfer case distributes that power between the front and rear axles. Depending on the vehicle, it may also let the driver select different drive modes or provide a low-range gear for situations that require extra torque.

So, what does a transfer case do in everyday driving? It can help your vehicle:

Send power to the front and rear axles.

Engage or disengage 4WD when required.

Adjust how power is distributed in AWD systems.

Provide low-range gearing in many 4WD vehicles.

Exactly how does a transfer case work depends on the vehicle's AWD or 4WD system. Some allow the driver to select 4WD manually, while many modern AWD systems use electronically controlled components to adjust power distribution automatically. Regardless of the design, the transfer case contains moving parts that need proper lubrication to operate reliably.

What Are the Signs of a Bad Transfer Case?

Common bad transfer case symptoms include unusual transfer case noise, fluid leaks, vibration, warning lights, and problems with AWD or 4WD engagement. These transfer case warning signs can point to a problem, but a symptom alone does not prove the transfer case has failed. Similar issues can come from other drivetrain components, so accurate diagnostics are important.

Unusual Noises

A transfer case noise may sound like humming, whining, grinding, or clunking, especially when AWD or 4WD is engaged. A transfer case grinding noise or transfer case whining noise may become louder with vehicle speed or under load. These sounds can be associated with worn bearings, gears, a damaged drive chain, or low fluid, but the exact cause requires inspection.

Fluid Leaks

A transfer case fluid leak can reduce lubrication and allow internal components to wear prematurely. You may see fluid underneath the center of the vehicle near the transmission or transfer case. Fluid color varies by vehicle and fluid type, so appearance alone is not enough to identify it. Heavy leakage, active dripping, or a damaged housing should be checked promptly.

AWD or 4WD Engagement Problems

Problems in a four-wheel drive are more noticeable transfer case failure symptoms. You may experience 4WD not engaging, become stuck in 4WD High or Low, or notice AWD not working as expected. Electronic shift motors, actuators, wiring, control modules, and other drivetrain components can cause similar symptoms, so testing is needed before blaming the transfer case.

Warning Lights or Messages

A 4WD light on dashboard or transfer case warning light may appear when the vehicle detects a fault in the transfer case system or a related component. Some vehicles may display messages such as “Service 4WD” or “Service AWD.” The system may also limit AWD or 4WD operation. The light should be diagnosed rather than simply cleared, since the stored fault can help identify the underlying problem.

Vibration or Driveline Binding

A transfer case vibration may be felt through the floor or center of the vehicle, particularly as speed increases or under acceleration. Some vehicles may also jerk, hop, or resist turning during slow, tight turns, known as driveline binding. These transfer case problems can be related to internal wear, but driveshaft, tire, axle, or other drivetrain issues can create similar sensations.

Overheating or Changing Performance

Transfer case overheating can occur when the unit is operating under excessive stress or has a lubrication or internal problem. You may notice unusual heat, burning smells, changing noises, or worsening AWD/4WD performance. These transfer case warning signs should not be ignored, especially if accompanied by engagement problems or a warning light.

Continuing to drive with severe fluid loss, mechanical binding, or other serious symptoms can cause further damage to the transfer case and potentially affect the transmission, driveshafts, or differentials. What may have started as a manageable repair can become a much more expensive drivetrain problem.

For milder symptoms, such as a faint hum, occasional shift hesitation, or a slow seal seep, cautious driving to a repair shop may be reasonable. Even then, have the vehicle inspected promptly rather than continuing to drive normally for an extended period.

What Causes Transfer Case Failure?

Understanding what causes transfer case failure can help you recognize problems earlier and reduce the risk of avoidable drivetrain damage. The most common causes include low fluid levels, skipped maintenance, and physical damage to the transfer case.

Low Fluid Levels

Low fluid is one of the most common causes of premature transfer case failure. Transfer case fluid lubricates and helps cool internal components such as gears, bearings, chains, and clutch packs when equipped. If the fluid level drops because of a leak, improper service, or neglected maintenance, these parts can wear more quickly without proper lubrication.

The damage may develop gradually, so you might not notice a problem at first. By the time unusual noises, shifting problems, or other symptoms appear, significant internal wear may have already occurred.

Lack of Maintenance

Transfer case fluid breaks down over time and should be replaced according to the vehicle manufacturer’s maintenance recommendations. Many vehicles call for service somewhere around 30,000 to 60,000 miles, but the correct interval varies by drivetrain design, manufacturer, and driving conditions. Some vehicles may specify longer intervals, shorter intervals for severe use, or periodic inspection instead.

Towing, off-road driving, and frequent stop-and-go driving can place additional demands on the drivetrain and may accelerate fluid breakdown. Following the recommended transfer case maintenance schedule helps keep the fluid and internal components in better condition.

Structural Damage

Because the transfer case sits relatively low in the drivetrain, it can be exposed to road debris and impacts. Off-road driving creates an obvious risk, but hitting a tall curb, large piece of debris, or other obstacles can also damage the housing.

Cracked housing can cause rapid or severe fluid loss, leaving the internal components without adequate lubrication. When the housing is badly damaged, transfer case replacement may be more practical than trying to repair the unit., transfer case replacement may be more practical than trying to repair the unit.

Regular inspections and timely fluid service can help catch leaks and other developing issues before they lead to more extensive transfer case damage.

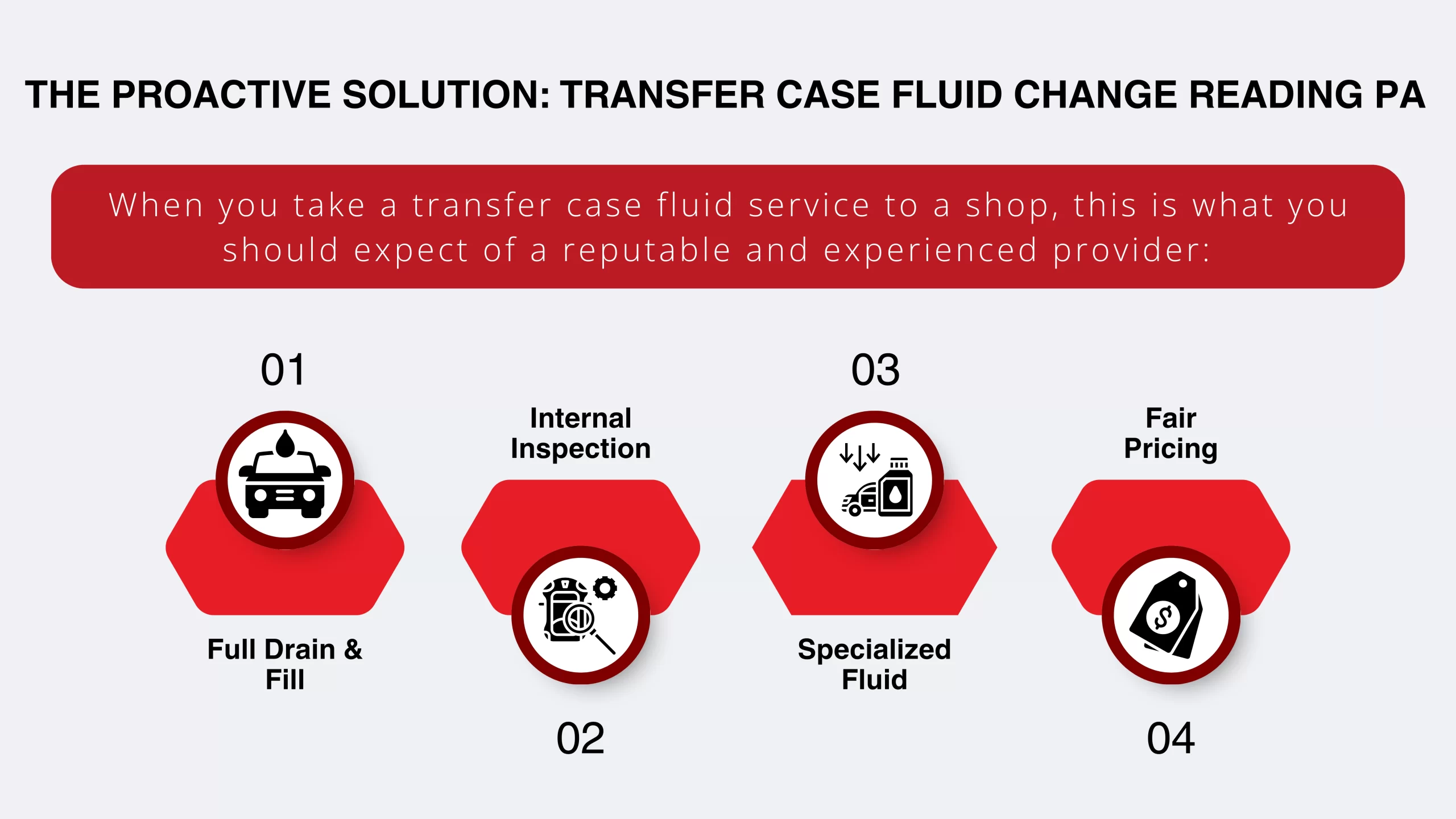

How Does Transfer Case Fluid Maintenance Work?

Transfer case fluid is the lubricant inside the transfer case that helps reduce friction, control heat, and protect moving parts such as gears, bearings, chains, and clutch packs when equipped. Keeping the fluid at the correct level and condition is important for reliable AWD or 4WD operation, while the required fluid type and service interval vary by vehicle.

Checking the Fluid and Transfer Case

During a transfer case fluid service, the technician first accesses the transfer case and identifies the fill and drain plugs. The fill plug is typically loosened before the old fluid is drained, ensuring the case can still be opened and refilled if the fill plug is difficult to remove.

Once the old fluid is drained, the magnetic drain plug can be inspected for excessive metal particles. A small amount of debris can occur with normal wear, but an unusual amount of metal may point to accelerated internal wear and warrants further inspection.

Draining and Replacing the Fluid

The old transfer case fluid is allowed to drain completely before the drain plug is cleaned, reinstalled, and tightened to the manufacturer's specifications. The case is then refilled through the fill opening with the specific fluid and quantity required for that vehicle.

Although drivers may refer to this service as a transfer case oil change, the correct lubricant depends on the vehicle. Some transfer cases use gear oil or automatic transmission fluid, while modern electronically controlled systems may require specialized fluids designed for their internal components.

How Often Should It Be Serviced?

If you're wondering how often to change transfer case fluid, the vehicle manufacturer's maintenance schedule should be the starting point. There is no universal mileage that applies to every AWD or 4WD vehicle, and the transfer case fluid change interval can vary based on the drivetrain, manufacturer, and operating conditions.

Towing, off-road driving, and other demanding use can place additional stress on the system and may affect when to change transfer case fluid. Always check the owner's manual for the recommended service interval and fluid specification.

Transfer Case Fluid Change vs. Flush

A routine transfer case fluid change involves draining the existing fluid and replacing it with the specified fresh lubricant. A transfer case flush is not automatically necessary for routine maintenance and should only be performed when appropriate for the vehicle and recommended service procedure.

Keeping up with transfer case fluid replacement as specified by the manufacturer is an important part of transfer case maintenance. It also gives a technician an opportunity to identify leaks, contamination, or abnormal wear before they develop into more serious problems.

The Repair vs. Replacement Decision

Whether a transfer case should be repaired or replaced depends on what a technician finds during diagnosis. Not every transfer case problem requires a complete replacement. When the housing is intact and the damage is limited to a specific component, a targeted repair may restore the system without the cost of replacing the entire assembly.

When Repair Makes Sense

A repair may be appropriate when the damage is limited and the main transfer case components remain in usable condition. Issues such as contaminated fluid, a faulty speed sensor, or a failed electronic shift motor can sometimes be addressed without replacing the complete unit.

A technician will consider the condition of the housing, gears, chain, bearings, and other internal components before recommending a repair. This helps ensure that a lower-cost repair is actually a reliable solution rather than a temporary fix.

When Replacement Is the Better Option

Replacement may make more sense when the transfer case has extensive internal or structural damage. A cracked or punctured housing, severely damaged chain, or substantial wear and pitting on the main gears can make rebuilding the existing unit impractical.

In these situations, the cost of individual components and the labor required to completely disassemble, rebuild, and reassemble the transfer case can approach or exceed the cost of a new or remanufactured assembly. The technician may therefore recommend replacement based on overall repair cost, reliability, parts availability, and any applicable warranty.

The goal is not simply to choose the cheapest option. A proper diagnosis helps determine which approach provides a dependable repair while avoiding unnecessary replacement costs.

How Much Does Transfer Case Service Cost?

The transfer case service cost depends heavily on what your vehicle needs. Routine fluid service is generally far less expensive than repairing major internal damage, while a complete replacement can cost several thousand dollars. The vehicle, labor, fluid requirements, and extent of damage all affect the final price.

For a clearer picture, here are the main cost categories and the ranges supported by the available research:

Service

Minor targeted repair
Complete replacement
Common truck/SUV replacement
Replacement unit alone
Full replacement labor

Typical Cost

$350–$800
$2,000–$8,000
$3,150–$3,500
$2,400+
$650–$975

A transfer case fluid change cost will normally be much lower than a major repair or replacement, but the available data does not provide a reliable universal range. The same applies to diagnosis and inspection, which can vary based on the vehicle and the testing required.

What Changes the Final Price?

A transfer case repair cost can vary considerably depending on whether the problem involves a seal, sensor, shift component, or internal mechanical damage. A transfer case rebuild cost also depends on which internal components must be replaced and how much labor is required.

For a transfer case replacement cost, the price of the assembly itself can be a major factor. Vehicle make and model, drivetrain design, parts availability, labor rates, accessibility, and local market conditions can all change the final bill. Luxury SUVs and heavy-duty trucks, for example, may require more expensive or specialized components.

The important distinction is between routine maintenance and major repair. A fluid service or minor repair may prevent or address a developing problem, while severe internal damage can make rebuilding or replacing the entire transfer case the more practical option.

When Should You Get Your Transfer Case Serviced?

The best time for a transfer case inspection is before a small maintenance issue turns into a major drivetrain problem.

If you need a transfer case inspection, Reading, PA drivers can rely on; Berks Auto Repair can evaluate the system and perform transfer case diagnostics in Reading, PA to determine what is actually wrong. Early diagnosis helps determine whether your vehicle needs simple fluid service, further inspection, repair, or complete replacement.

Transfer Case Service for AWD and 4WD Vehicles in Reading, PA

AWD and 4WD systems can differ significantly between vehicles, so proper service starts with identifying the system and following its specific maintenance requirements. Whether you need routine fluid service or help diagnosing a drivetrain concern, the right approach depends on the vehicle and the problem.

Routine Fluid Service

Routine fluid service helps maintain proper lubrication and protect internal transfer case components. The correct fluid and service procedure depend on the vehicle.

Inspection and Diagnostics

Accurate testing can help determine whether a noise, leak, warning light, or engagement problem is actually coming from the transfer case or another drivetrain component.

Transfer Case Repair

If a problem is confirmed, the repair should address the actual cause rather than replacing parts unnecessarily. Transfer case repair Reading PA drivers need should start with an accurate diagnosis.

AWD/4WD Drivetrain Service

For drivers looking for 4WD service Reading PA or AWD service Reading PA, Berks Auto Repair provides ASE-certified technicians, transparent pricing, quality parts, and honest recommendations.

For transfer case service near me or transfer case repair near me, local drivers in Reading and throughout Berks County can have the system properly inspected before deciding what service is needed. Berks Auto Repair also provides transfer case service in Berks County, PA and transfer case repair in Berks County, PA with a focus on accurate diagnostics rather than unnecessary repairs.

Final Thoughts

Proper transfer case maintenance is an important part of keeping an AWD or 4WD vehicle reliable. Keeping the transfer case fluid at the correct level and following the manufacturer’s service recommendations can help protect internal components and reduce avoidable wear. Just as importantly, unusual noises, leaks, warning lights, or engagement problems should not be ignored. Early diagnosis can help identify a manageable issue before it develops into more extensive drivetrain damage.

Could your AWD or 4WD system be showing signs of a problem? Berks Auto Repair provides accurate diagnostics, honest recommendations, transparent pricing, and service from ASE-certified technicians for drivers in Reading and throughout Berks County. From transfer case service Reading PA to 4WD repair Reading PA, we focus on providing the right solution.

SCHEDULE YOUR SERVICE NOW

FREQUENTLY ASKED QUESTIONS

— How often should you change transfer case fluid?

The correct interval depends on your vehicle, so start with the manufacturer’s transfer case service interval in the owner’s manual. A common guideline is around 30,000–60,000 miles, but towing, off-road driving, and other severe use may require more frequent service. This is why how often to change transfer case fluid should be based on your specific vehicle and driving conditions.

+ Can low transfer case fluid cause problems?

Yes. Low fluid can reduce lubrication and increase wear on internal gears, bearings, chains, or clutch components. A transfer case fluid leak is one possible cause of low fluid, and transfer case leaking fluid should be inspected promptly. However, low fluid is a symptom or condition, not necessarily the underlying cause of the problem.

+ What are the signs your transfer case needs service?

Common signs transfer case needs service include unusual grinding, whining, humming, vibration, fluid leaks, difficulty engaging AWD or 4WD, and drivetrain warning lights. These symptoms do not automatically mean the transfer case has failed, since other drivetrain components can produce similar problems. Proper diagnosis is important.

+ Can you drive with a transfer case problem?

It depends on the problem and how severe it is. Minor symptoms may allow limited driving to a repair shop, but significant fluid leaks, severe noises, overheating, binding, or other transfer case failure symptoms can worsen with continued driving. If transfer case overheating or serious mechanical symptoms occur, having the vehicle inspected or towed is safer.

+ Do AWD and 4WD vehicles need transfer case service?

Many AWD and 4WD vehicles require transfer case maintenance, but the design and service requirements vary by vehicle. Some systems use different fluids or service procedures, so the manufacturer’s recommendations should be followed. If you are searching for AWD maintenance near me or 4WD maintenance near me, make sure the shop can identify and service your specific drivetrain correctly.

+ How much does transfer case repair or replacement cost?

The cost depends on whether the vehicle needs fluid service, a minor repair, rebuilding, or complete replacement. A minor repair may cost hundreds of dollars, while extensive damage and replacement can reach several thousand. The transfer case repair cost and transfer case replacement cost depend on the vehicle, parts, labor, accessibility, and severity of the damage.
