Rear Main Seal Leak: Symptoms, Causes, Repair, and Replacement Cost

A rear main seal leak can start as a small oil spot and become a costly engine problem if ignored. Learn the symptoms, common causes, repair options, and replacement costs to identify the issue early and make informed repair decisions.

From Oil Spot to Major Repair

A rear main seal leak is one of the most serious engine oil leaks because it allows oil to escape where the crankshaft meets the engine. If left untreated, it can lead to low oil levels, poor engine lubrication, and expensive engine damage. Knowing the rear main seal leak symptoms early can help you schedule the right rear main seal repair before the problem becomes much more costly.

This guide explains how to recognize the warning signs, what causes a rear main seal to fail, and what to expect from engine oil leak repair. You'll also learn about repair and replacement options, factors that affect rear main seal replacement cost, and when a professional diagnosis is the best way to confirm the source of an oil leak.

What Is a Rear Main Seal Leak?

A rear main seal leak happens when the seal at the back of your engine begins to wear out and allows engine oil to escape. The rear main seal is a circular rubber seal located where the crankshaft exits the engine block and connects to the transmission. Its job is to keep engine oil inside the crankcase while the crankshaft spins at high speed, helping the engine stay properly lubricated and protected.

Over time, heat, age, and constant engine movement can cause the seal to harden, crack, or lose its sealing ability. As this happens, oil can leak from the area around the crankshaft, creating a crankshaft seal leak that may worsen if left untreated. Although the seal itself is small, it plays a critical role in preventing oil loss and maintaining engine performance.

Is a Rear Main Seal Leak Serious?

A leaking rear main seal is more than just a messy oil drip. Falling oil levels can reduce engine lubrication, leading to increased friction and possible engine damage. Leaking oil may also contaminate nearby components, such as the clutch or torque converter, and can drip onto hot exhaust parts, creating a fire hazard. If the seal has failed, rear main seal replacement or another form of engine seal replacement is often needed to restore proper sealing and protect the engine.

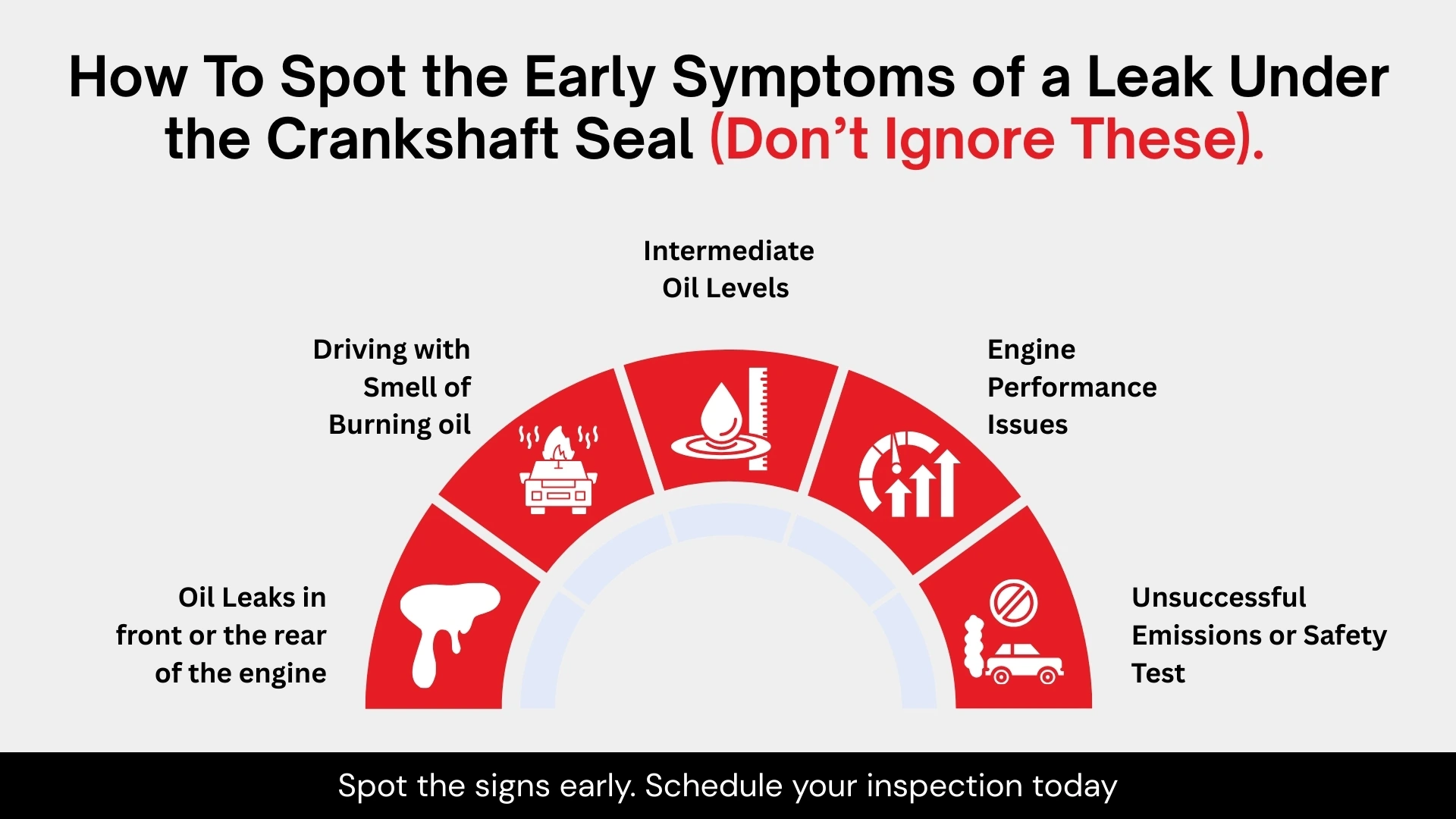

What Are the Signs of a Rear Main Seal Leak?

A rear main seal leak can cause several warning signs, but none of them confirm the problem on their own. Many engine oil leaks produce similar symptoms, so a proper inspection is the best way to identify the exact source. The following are the most common rear main seal leak symptoms to watch for.

Oil Spots Under Your Car

Finding oil spots under your car after it has been parked is one of the earliest warning signs. As the engine warms up, the leaking seal can allow more oil to escape, leaving puddles beneath the engine area. Since other leaks can cause similar stains, the source should be inspected before assuming it's a rear main seal.

Warning Lights

Oil leaking onto hot engine or exhaust components can create a burning oil smell from the engine. In severe cases, low oil levels trigger a warning light, and some vehicles display an oil leak and check engine light together. These warning signs should never be ignored because they can indicate an irreparable leak.

Frequent Need for Oil Top-Offs

A leaking rear main seal can cause steady oil loss, meaning you may need to top off the engine oil more often than usual. If you also notice a low engine oil warning, have the vehicle inspected promptly to prevent poor lubrication and possible engine damage.

Oil Around the Rear of the Engine

A rear engine oil leak may spread underneath the vehicle as air pushes leaking oil toward the back while driving. If the underside of your vehicle becomes coated with fresh oil, it is a strong sign that an engine oil leak needs professional diagnosis.

Could It Be Another Oil Leak Instead?

Not every oil leak comes from the rear main seal. Several engine components can leak oil in similar areas, making it easy to misidentify the problem. The following are some of the most common sources of engine oil leaks and how they differ.

Oil Pan Gasket Leak

The oil pan gasket seals the bottom of the engine and can wear out over time. When it leaks, oil usually drips from the lowest part of the engine and may collect near the bell housing. Because of its location, it is often mistaken for a rear main seal leak during a visual inspection.

Valve Cover Gasket Leak

A leaking valve cover gasket allows oil to escape from the top of the engine. As the oil runs down the back of the engine, it can resemble a rear main seal leak. Tracing the leak to its highest point is often the key to an accurate oil leak diagnosis.

Distributor O-Ring Leak (Older Vehicles)

On older vehicles with a distributor, a worn O-ring can allow engine oil to leak down the back of the engine block. Since the oil follows the engine's surface before dripping, it can easily be confused with a leak from the rear main seal.

Torque Converter or Transmission Fluid Leak

Fluid leaking from the torque converter seal or transmission input shaft may appear near the same area as a rear main seal leak. However, transmission fluid is usually red or reddish-brown and has a different smell and consistency than engine oil, making it important to identify the fluid before planning any engine oil leak repair.

Camshaft or Crankshaft Position Sensor O-Ring Leak

Some engines use O-rings to seal camshaft or crankshaft position sensors. When these seals fail, oil can drip onto nearby components and create the appearance of a front crankshaft seal leak, front engine oil leak, or crankshaft seal leak. Since oil often spreads while driving, professional diagnosis is the most reliable way to identify the true source of the leak.

What Causes a Rear Main Seal Leak?

Most rear main seal leak problems develop gradually rather than all at once. While some causes are part of normal wear as a vehicle ages, others result from maintenance issues or related engine problems. The following are the common causes of oil leaks involving the rear main seal.

Using the Wrong Engine Oil

Using an engine oil that does not meet your manufacturer's specifications can shorten seal life. Some oil additives may cause the seal to harden or dry out over time, while overfilling the engine can increase pressure and encourage leaks. Following the recommended oil type and maintaining the correct oil level helps reduce unnecessary wear.

Worn Main Bearings

Worn main bearings can allow the crankshaft to move more than it should. This extra movement places stress on the seal, eventually leading to a bad crankshaft seal. In most cases, bearing failure is also accompanied by unusual engine noise, making it a sign of a larger mechanical problem that requires immediate attention.

Incorrect Seal Installation

A rear main seal must be installed correctly to create a proper seal around the crankshaft. If the seal is lubricated or installed incorrectly when it is designed to be fitted dry, it may begin leaking soon after installation. This is why proper installation is just as important as using quality replacement parts.

Crankshaft Wear or Damage

The rear main seal depends on a smooth crankshaft surface to keep engine oil contained. If the crankshaft becomes worn, scratched, or damaged, the seal may no longer fit tightly enough to prevent leaks. Depending on the condition of the crankshaft, repairing the surface may be necessary before installing a new seal.

Clogged PCV System

A blocked Positive Crankcase Ventilation (PCV) system can increase pressure inside the engine. As pressure builds, it pushes against the rear main seal until oil begins to escape. Since this is one of what causes crankshaft seal leaks, checking the PCV system is an important part of diagnosing engine lubrication problems and recurring seal leaks.

Misalignment Issues

Misalignment between the engine, transmission, or rotating components can cause constant stress on the rear main seal. Over time, this uneven pressure can contribute to crankshaft seal failure even if the seal itself is relatively new. A thorough inspection helps determine whether misalignment, rather than the seal alone, is causing the leak.

Can You Drive with a Rear Main Seal Leak?

Yes, you can drive with a leaking crankshaft seal in some cases, but it is only a short-term solution and not a safe long-term plan. A small rear main seal leak may allow you to drive a short distance to a repair shop, but continuing to drive as the leak worsens increases the risk of oil leak causing engine damage.

Even if you regularly top off the engine oil, the leak itself will not stop. The seal has already failed, and oil loss can become worse without warning. While checking the oil level may temporarily reduce the risk, it cannot prevent further wear or protect the engine if too much oil is lost.

When Should You Stop Driving?

The following engine oil leak warning signs mean you should stop driving and have the vehicle inspected as soon as possible:

The low engine oil or oil pressure warning light comes on.

Oil is leaking heavily or forming large puddles under the vehicle.

You notice unusual engine noise caused by low oil levels.

The engine begins overheating or you smell burning oil.

Ignoring these warning signs can lead to major engine damage from oil leaks, turning a seal replacement into a much more expensive engine repair.

What Happens If You Ignore a Rear Main Seal Leak?

Ignoring a rear main seal leak can lead to bigger and more expensive problems over time. While a small leak may seem manageable at first, continued oil loss can affect engine performance and increase the risk of serious damage. The following are the most important risks to understand.

Low engine oil levels can reduce lubrication, increasing friction between moving parts and oil leak causing engine damage if the problem is left unresolved.

A severe leak can lead to engine oil consumption issues, requiring frequent oil top-offs. If the oil level drops too low, the engine may suffer costly internal damage.

Leaking oil can spread onto nearby components, including suspension parts, electrical connectors, and engine accessories, increasing wear and creating additional repair needs.

Oil that reaches hot exhaust components may produce a burning smell and, in rare cases, increase the risk of a fire hazard.

High engine speeds, long highway trips, or driving on steep inclines can cause the leak to worsen, leading to faster oil loss and oil leak and engine performance issues.

Ignoring engine oil leak warning signs, such as low oil pressure or heavy oil leaks, increases the chance of major engine damage from oil leaks and more extensive repairs.

Addressing a rear main seal leak early is usually simpler and less expensive than waiting for the problem to become more severe.

Why Does Rear Main Seal Replacement Cost So Much?

The rear main seal replacement cost is usually driven by labor rather than the seal itself. Although the part is relatively inexpensive, reaching it often requires removing major drivetrain components. As a result, the total oil leak repair cost can vary significantly from one vehicle to another.

A detailed inspection and clear estimate help ensure you're paying for the right repair, not just the quickest one.

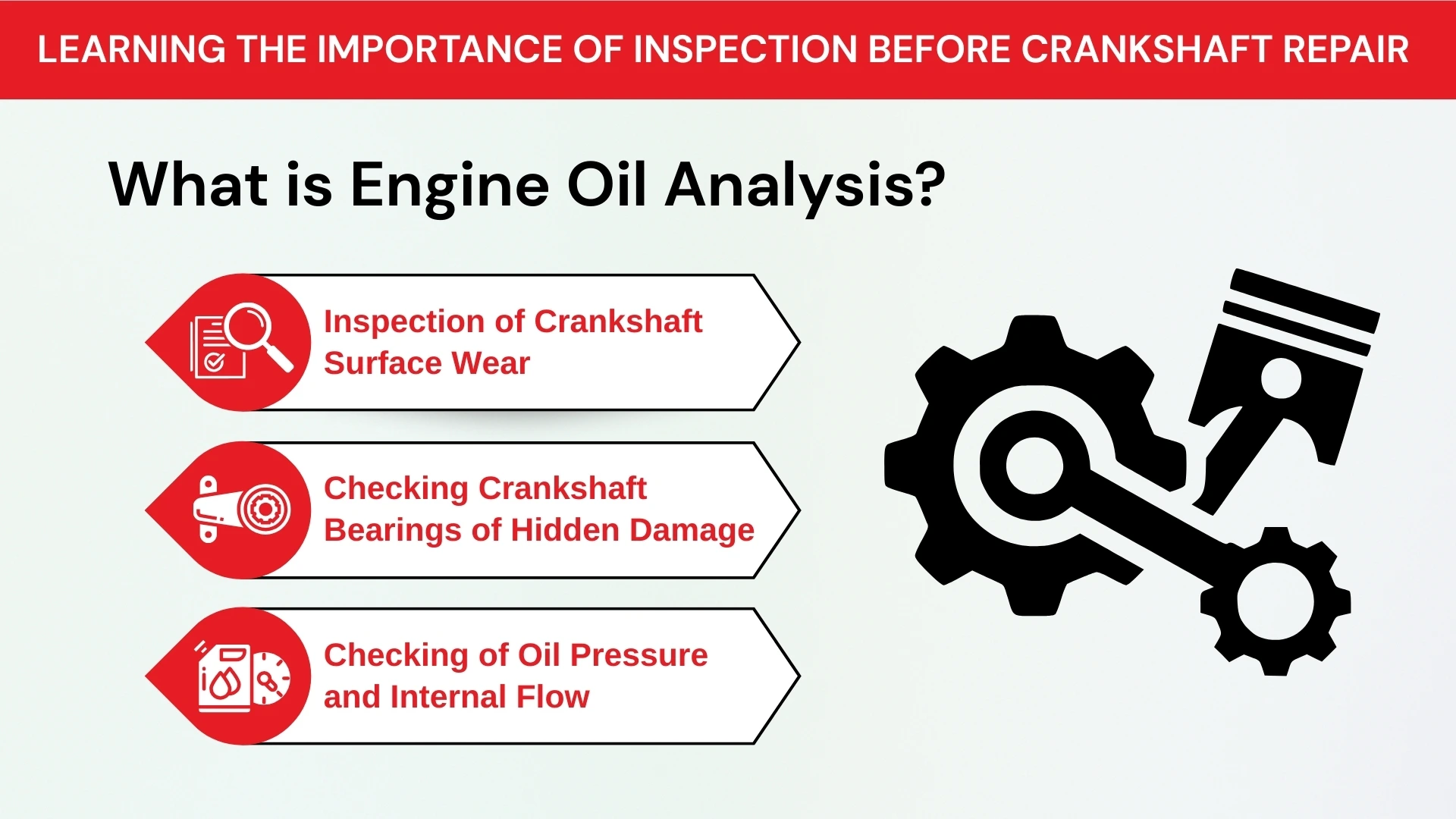

How Is a Rear Main Seal Leak Diagnosed?

An accurate oil leak diagnosis is the first step before any repair is recommended. Because many engine oil leaks produce similar symptoms, technicians confirm the exact source of the leak before deciding whether the rear main seal is actually responsible. The following is the typical diagnostic process.

Initial Visual Inspection

The inspection usually begins with a careful visual check of the engine. Technicians look for fresh oil around the bell housing, engine block, oil pan, and valve covers while also checking the type and pattern of the leak. Since oil can travel across engine components, the visible drip is not always where the leak started. This initial engine oil leak inspection helps narrow down the possible sources.

Cleaning and Tracing the Leak

Before confirming the leak, the affected area is thoroughly cleaned to remove old oil and dirt. Once the engine is clean, technicians monitor for fresh oil or use a UV dye to trace the leak back to its exact origin. This step improves engine leak diagnostics and helps distinguish a rear main seal leak from leaks caused by nearby gaskets or seals.

Confirming the Leak Source

After identifying fresh oil, technicians inspect the area where the engine and transmission meet to determine whether the rear main seal is leaking. They also perform a crankshaft seal inspection and compare the leak pattern with other common sources, such as the oil pan gasket, valve cover gasket, or front engine seals. This prevents unnecessary repairs based on guesswork.

Inspecting Related Components

A complete car leaking oil diagnosis includes checking nearby components that may have contributed to the leak or could require attention during the repair. This may include the crankshaft surface, surrounding seals, and the PCV system if excessive crankcase pressure is suspected. Taking the time to complete a thorough oil leak detection service ensures the repair recommendation is based on the actual cause of the leak rather than its symptoms alone.

When Should You Schedule a Rear Main Seal Repair?

If you notice ongoing signs of an oil leak, it's best to schedule a rear main seal repair before the problem becomes more serious. An early rear main seal inspection can confirm the source of the leak and help determine whether repairs are needed.

Oil spots keep appearing under your vehicle.

You frequently need to add engine oil.

A burning oil smell develops while driving.

The low oil or oil pressure warning light comes on.

Oil is visible around the transmission bell housing.

The leak becomes heavier over time.

Having the vehicle inspected early at a qualified oil leak repair shop can help identify the cause of the leak before it leads to more extensive engine oil leak repair. If needed, an engine leak specialist can recommend the most appropriate repair based on the condition of your vehicle.

Why Choose Berks Auto Repair for Oil Leak Solutions?

Finding the right oil leak repair shop is just as important as fixing the leak itself. At Berks Auto Repair, we focus on accurate diagnosis, honest recommendations, and repairs that are based on your vehicle's actual needs—not guesswork.

If you're searching for oil leak repair near me or reliable engine oil leak repair Reading PA, our technicians begin with a thorough inspection to identify the exact source of the leak before recommending a repair.

Whether you need a rear main seal repair Reading PA or another type of engine repair Reading PA, you can expect clear communication, transparent pricing, and quality replacement parts. Our ASE-certified technicians take the time to explain their findings, answer your questions, and help you choose the repair option that best fits your vehicle and budget.

Our goal is to help you fix the problem correctly the first time, so you can get back on the road with confidence.

Final Thoughts

A rear main seal leak is more than a simple oil drip; it can lead to ongoing oil loss and costly engine problems if left unaddressed. Recognizing the warning signs early, getting an accurate oil leak diagnosis, and choosing the right rear main seal repair can help prevent unnecessary damage and avoid more extensive engine oil leak repair later. If you suspect your vehicle has an oil leak, having it professionally inspected is the best way to identify the source and make an informed repair decision before the problem gets worse.

Get the Right Solution for Your Oil Leak

If you've noticed the signs of a rear main seal leak, don't wait until a small problem turns into a major repair. At Berks Auto Repair, we provide complete engine oil leak repair, from accurate diagnostics and seal replacements to related engine repairs, so you can address the problem with confidence and get back on the road safely.

You can also explore these related services:

Valve cover gasket replacement for common oil leak source.

Oil pump replacement to address oil pressure concerns.

Engine block repair for more serious engine damage.

SCHEDULE YOUR SERVICE NOW

FREQUENTLY ASKED QUESTIONS

— How serious is a rear main seal leak?

A rear main seal leak should not be ignored. While a small leak may not cause immediate problems, continued oil loss can reduce engine lubrication and increase the risk of expensive repairs if left untreated.

+ What causes a rear main seal to fail?

The most common causes include normal wear, heat, age, excessive crankcase pressure, improper installation, crankshaft wear, or using the wrong engine oil. A professional inspection can identify the exact cause.

+ How do I know if my rear main seal is leaking?

Common rear main seal leak symptoms include oil spots under your vehicle, frequent oil top-offs, a burning oil smell, or oil collecting near the transmission bell housing. A technician can confirm how to tell if a crankshaft seal is leaking through a proper inspection.

+ Is a rear main seal leak different from a front crankshaft seal leak?

Yes. A rear main seal leak occurs where the crankshaft meets the transmission, while a front crankshaft seal leak develops behind the crankshaft pulley at the front of the engine. Although the symptoms are similar, the leak locations and repairs are different.

+ Can an oil leak damage my engine?

Yes. Continued oil loss can reduce lubrication, causing increased friction and overheating. If ignored, an oil leak causing engine damage may eventually result in major engine damage from oil leaks.

+ Can you drive with a rear main seal leak?

You may be able to drive a short distance if the leak is minor, and the oil level is monitored closely. However, continued driving with a worsening leak increases the risk of low oil levels and engine damage.

+ Can an oil additive fix a rear main seal leak permanently?

No. Oil additives may temporarily reduce very small leaks by softening worn seals, but they do not repair a damaged seal. A permanent fix usually requires replacing the rear main seal.

+ How long does rear main seal replacement usually take?

The repair often takes several hours because the transmission must be removed to reach the seal. On some vehicles, the engine may also need to be removed. The exact repair time depends on the vehicles design and the amount of work involved.

+ How long does a rear main seal typically last?

A rear main seal often lasts between 100,000 and 150,000 miles under normal driving conditions. Its lifespan can be shorter if the engine is poorly maintained or experiences excessive heat or crankcase pressure.

+ Is it worth fixing an old car with a rear main seal leak?

It depends on the vehicles overall condition, repair cost, and how long you plan to keep it. If the car is otherwise reliable, repairing the leak is often worthwhile to help prevent more serious engine problems.
